Thread : NPT 1/2”- Description

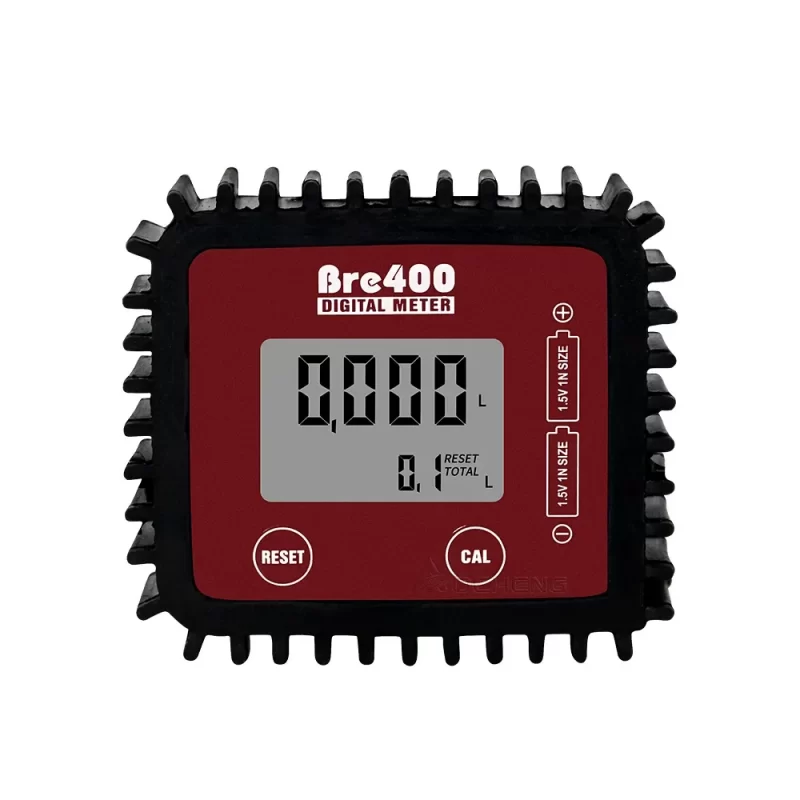

Oil flow meters for controlling the dispensing of lubricating oils and diesel. Body with aluminium measuring chamber.allows for a high degree of accuracy when measuring and reduced loss of pressure.
This can be used either in-line on hoses, or on the nozzle, for instantaneous measuring of the fluid dispensed.
| Model | OILM01 |
| Thread | NPT 1/2” |
| Working pressure | 70 bar |
| Loss of pressure | <0.5 bar |
| Flow rate | 1-30L/min |
| Accuracy | +/- 0,5 % |
| Repeatability | 0.2 |
| Viscosity | 2 – 2000 cS |
| Materials | Aluminium body, Rubber protector |
| Power | Standard AAA-size batteries |
